Kubernetes - Services

Delve into Kubernetes Services

Kubernetes - Services

Introduction

Kubernetes Services are a critical component of the Kubernetes ecosystem, enabling reliable communication between different components of a cluster. In this blog, we will explore what Kubernetes Services are, the different types available, and their purposes, including load balancing, service discovery, and headless configurations.

What Are Kubernetes Services?

  • In Kubernetes, a Service is an abstraction that defines a logical set of pods and a policy to access them.
  • Since pods are ephemeral and can be replaced at any time, Services provide a stable way to interact with the underlying pods, ensuring consistent communication within the cluster or with external clients.
  • Key Features of Kubernetes Services:
    • Abstract communication between components.
    • Provide stable IP addresses and DNS names.
    • Enable load balancing across multiple pods.
    • Facilitate service discovery.

Types of Kubernetes Services

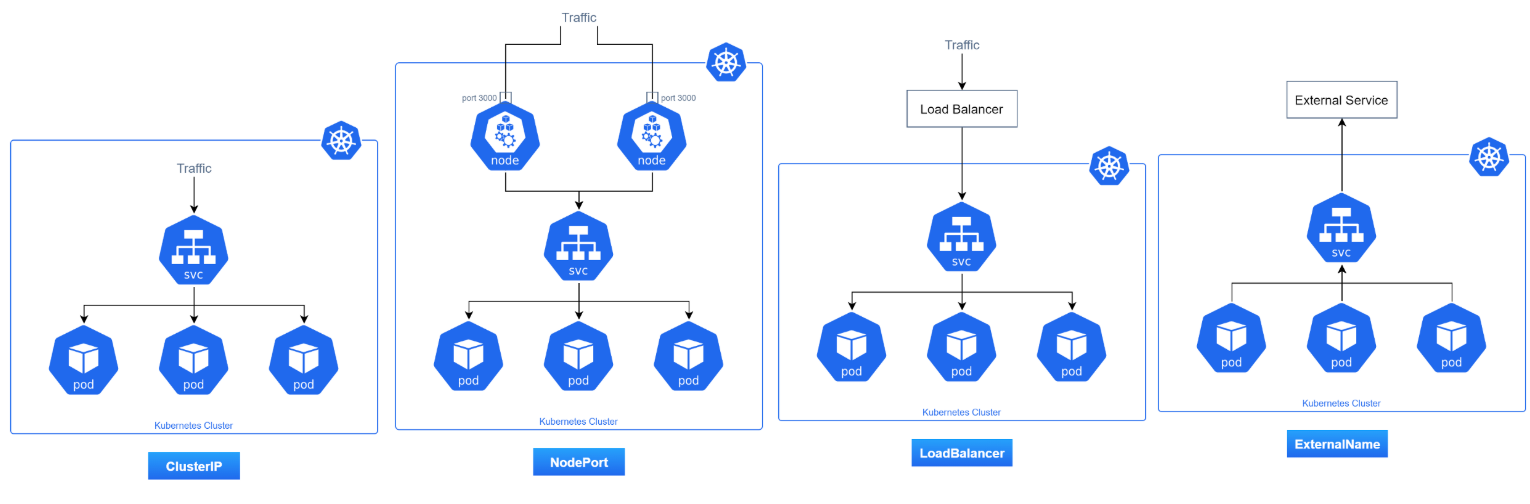

Kubernetes Service Types

  • Kubernetes offers four main types of Services, each designed for a specific use case:
  1. ClusterIP (default):
    • Exposes the Service within the cluster.
    • Pods within the cluster can communicate with this Service using its internal IP.
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13

     apiVersion: v1
     kind: Service
     metadata:
       name: my-internal-service
     spec:
       selector:
         app: my-app
       type: ClusterIP
       ports:
       - name: http
         port: 80
         targetPort: 80
         protocol: TCP

  2. NodePort:
    • Exposes the Service on each node’s IP at a static port.
    • Allows external traffic to access the Service through :.
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14

     apiVersion: v1
     kind: Service
     metadata:
       name: my-nodeport-service
     spec:
       selector:
         app: my-app
       type: NodePort
       ports:
       - name: http
         port: 80
         targetPort: 80
         nodePort: 30036
         protocol: TCP

  3. LoadBalancer:
    • Integrates with cloud providers to provision an external load balancer.
    • Routes external traffic to the pods within the Service.
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12

     apiVersion: v1
     kind: Service
     metadata:
     name: my-loadbalancer-service
     spec:
     selector:
         app: my-app
     type: LoadBalancer
     ports:
         - protocol: TCP
         port: 80
         targetPort: 9376

  4. ExternalName:
    • Maps a Service to an external DNS name.
    • No proxying of traffic is performed; it resolves to the external name specified.
    1
    2
    3
    4
    5
    6
    7

     apiVersion: v1
     kind: Service
     metadata:
     name: my-externalname-service
     spec:
     type: ExternalName
     externalName: my.database.example.com


LoadBalancer Service

  • A LoadBalancer Service is used to expose a Service to external clients through a cloud provider’s load balancing infrastructure.
  • It is particularly useful for applications that need to be accessed publicly, such as APIs or front-end applications.
  • Key Benefits of LoadBalancer Services:
    • Automatically provisions an external load balancer.
    • Simplifies routing by abstracting complex configurations.
    • Balances traffic across multiple pods to ensure reliability and scalability.
  • Example YAML for a LoadBalancer Service:
1
2
3
4
5
6
7
8
9
10
11
12
apiVersion: v1
kind: Service
metadata:
  name: my-loadbalancer-service
spec:
  type: LoadBalancer
  selector:
    app: my-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080

Headless Service

  • A Headless Service is a Service without a cluster IP, used for direct pod-to-pod communication or service discovery in StatefulSets.
  • To create a headless Service, you set the clusterIP field to None.
  • Example YAML for a Headless Service:
1
2
3
4
5
6
7
8
9
10
11
12
apiVersion: v1
kind: Service
metadata:
  name: my-headless-service
spec:
  clusterIP: None
  selector:
    app: my-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  • Use Cases
    • Stateful applications requiring direct access to individual pod instances.
    • Service discovery in combination with DNS.

Services Summary

ServiceWhat It DoesKey FeaturesExampleUse Case
ClusterIPExposes application only within the cluster.Default service type; internal communication.Frontend app communicating with a backend API.Microservices communication within the cluster.
NodePortExposes application on a static port of each node.External access via NodeIP:NodePort.Accessing a web app on http://<NodeIP>:30007.Local testing or prototyping without load balancer setup.
LoadBalancerExposes application to the internet via a cloud provider’s load balancer.Simplifies external access; cloud-native.Hosting an e-commerce app accessible worldwide.Public-facing applications like websites or APIs.
ExternalNameMaps a Kubernetes service to an external DNS name.Acts as a DNS alias for external services.Connecting a Kubernetes app to an external database (e.g., AWS RDS).Integrating external resources into Kubernetes workloads.
Headless ServiceExposes individual Pods directly without a ClusterIP.Direct Pod-to-Pod communication.Running a distributed database like Cassandra with direct peer addressing.Stateful applications requiring direct Pod communication.

How Services Can Be Used for Service Discovery

  • Kubernetes Services facilitate service discovery by providing a stable DNS name that resolves to the Service’s IP or, in the case of headless Services, directly to the pod IPs.
  • How It Works:
    • DNS Integration: Kubernetes automatically creates DNS records for Services.
    • ClusterIP Services: Resolve to the Service’s IP.
    • Headless Services: Resolve to the individual pod IPs.
  • Example DNS queries:
    • my-service.default.svc.cluster.local resolves to the ClusterIP or pod IPs.
  • This ensures that applications can dynamically discover and communicate with other components, even if the underlying pods change.

How Endpoints Relate to Kubernetes Services

  • Endpoints are objects that represent the IP addresses and ports of the pods associated with a Service.
  • When a Service selects pods based on its label selector, Kubernetes automatically updates the corresponding Endpoint resource.
  • Key Points:
    • Endpoints map Services to the actual pods.
    • For headless Services, Endpoints list all pod IPs directly.
  • You can view Endpoints using:

    1

    kubectl get endpoints

  • Example Endpoint resource:
1
2
3
4
5
6
7
8
9
10
apiVersion: v1
kind: Endpoints
metadata:
  name: my-service
subsets:
  - addresses:
      - ip: 192.168.1.1
      - ip: 192.168.1.2
    ports:
      - port: 8080

Conclusion

Kubernetes Services are a cornerstone of application communication and discovery within a cluster. Whether you’re exposing applications to the outside world with LoadBalancer Services, enabling pod-to-pod communication with headless Services, or leveraging service discovery through DNS, Kubernetes Services offer a versatile and robust solution. By understanding the relationship between Services and Endpoints, you can build scalable and resilient architectures in your Kubernetes environment.
