AKS Architecture

Explore the key architectural elements of AKS, including the control plane, node pools, networking, storage, and integrations.

AKS Architecture

Introduction

As cloud-native adoption accelerates, Azure Kubernetes Service (AKS) has become one of the go-to managed Kubernetes solutions for deploying and managing containerized applications. But to make the most of AKS, it’s important to understand its architecture — how its components are structured and interact within Azure.

What is AKS?

  • AKS is a fully managed Kubernetes service provided by Microsoft Azure. It handles most of the operational complexity of running Kubernetes, including provisioning, upgrades, scaling, and monitoring.

AKS Architecture Overview

  • At a high level, AKS consists of two main components:
    • Control Plane (Managed by Azure)
    • Node Pools (Managed by you)

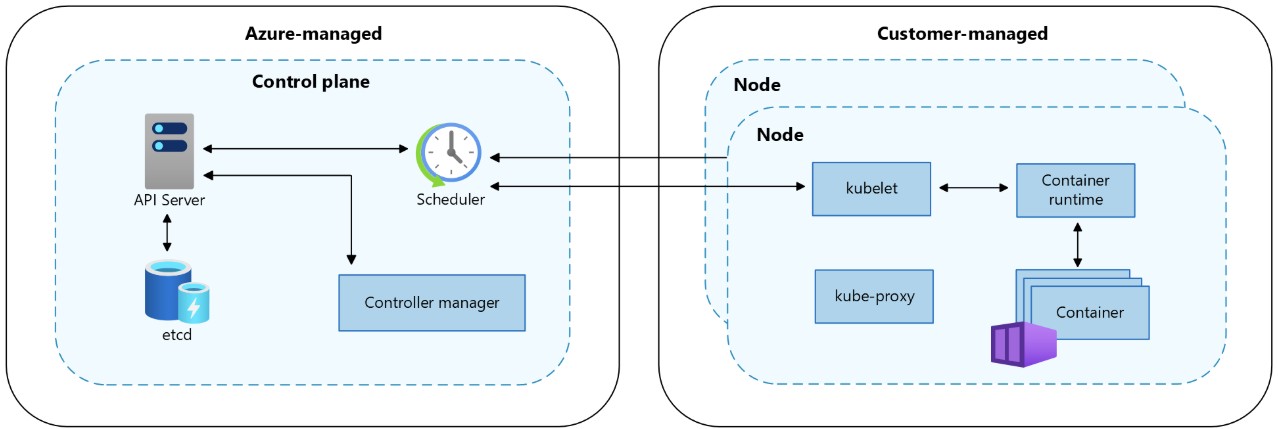

AKS Architecture

1. Control Plane

  • The control plane is the brain of the Kubernetes cluster.
  • In AKS, Azure fully manages the control plane — you don’t pay for it directly or manage it manually.
  • The control plane is offered as Free and Standard tier.
  • Components include:
    • Kube-API Server: Front door to the cluster.
    • Scheduler: Places workloads (pods) on the right nodes.
    • Controller Manager: Ensures cluster state matches the desired state.
    • etcd: The distributed key-value store for all cluster data.
  • Key characteristics:
    • No VM access: You can’t access the control plane VMs.
    • Automatic updates & patching: Azure handles control plane maintenance.

⚙️ 2. Node Pools

  • Node pools are sets of virtual machines (nodes) where your containers actually run.
  • Each node is an Azure VM (e.g., Standard_D2s_v3).
  • You can have multiple node pools (e.g., Linux and Windows).
  • Use taints and labels to isolate workloads (e.g., GPU workloads).
  • Nodes use the kubelet agent to communicate with the control plane.

  • You’re responsible for:
    • Choosing VM sizes
    • Upgrading node pools
    • Managing node-level metrics, autoscaling, and OS updates

3. Networking in AKS

  • AKS supports two networking models:
    • Kubenet (Basic)
      • IPs assigned to nodes; pods get internal IPs via NAT.
      • Simpler and consumes fewer IPs.
    • Azure CNI (Advanced)
      • Pods get IPs from Azure VNet directly.
      • Better integration with Azure services and NSGs.
  • Other networking elements:
    • Network policies: Control pod-to-pod communication.
    • DNS and CoreDNS: For internal service resolution.
    • Load Balancers: Ingress/egress traffic is managed via Azure LBs or Ingress Controllers.

4. Storage Architecture

  • Persistent storage options:
    • Azure Managed Disks for block storage
    • Azure Files for shared storage
    • Container Storage Interface (CSI) support
  • Storage is defined in Kubernetes via:
    • Persistent Volumes (PV)
    • Persistent Volume Claims (PVC)

5. Security and Identity

  • Entra ID integration for authentication.
  • Role-Based Access Control (RBAC) for fine-grained permissions.
  • Private clusters to restrict API access to within VNet.
  • Pod-managed identities via Azure Workload Identity.

6. Monitoring and Logging

  • AKS integrates seamlessly with:
    • Azure Monitor and Log Analytics
    • Container Insights for cluster-wide visibility
    • Prometheus/Grafana (self-managed or hosted)
  • Common metrics:
    • Node CPU/memory usage
    • Pod status and restarts
    • Kubelet logs
    • Network IO

7. Autoscaling

  • AKS supports three types of autoscaling:
    • Cluster Autoscaler: Adds/removes nodes.
    • Horizontal Pod Autoscaler (HPA): Scales pods based on CPU/memory.
    • Vertical Pod Autoscaler (VPA): Adjusts pod resource requests.
    • Kubernetes Event Driven Autoscaling(KEDA): Adjusts resources based on application metrics

8. Ingress Controllers

  • For HTTP traffic routing:
    • Use NGINX, Application Gateway Ingress Controller (AGIC), or Gateway API.
    • Allows you to expose services via Ingress resources.

9. Integrations

  • Azure Container Registry (ACR): Store private images.
  • Azure DevOps or GitHub Actions: CI/CD pipelines.
  • Azure Key Vault: Manage secrets securely.
  • Azure Policy: Enforce compliance rules in AKS.

10. High Availability

  • Use Availability Zones for resilient node pools.
    • Multi-zone clusters distribute workloads across zones.
    • Supports multi-region DR with backup/restore tools like Velero.

✅ Conclusion

Understanding AKS architecture is critical for designing scalable, secure, and cost-efficient containerized applications. While Azure takes care of the control plane, you still have fine-grained control over your worker nodes, networking, and integrations—giving you the flexibility of Kubernetes without its full operational complexity.
